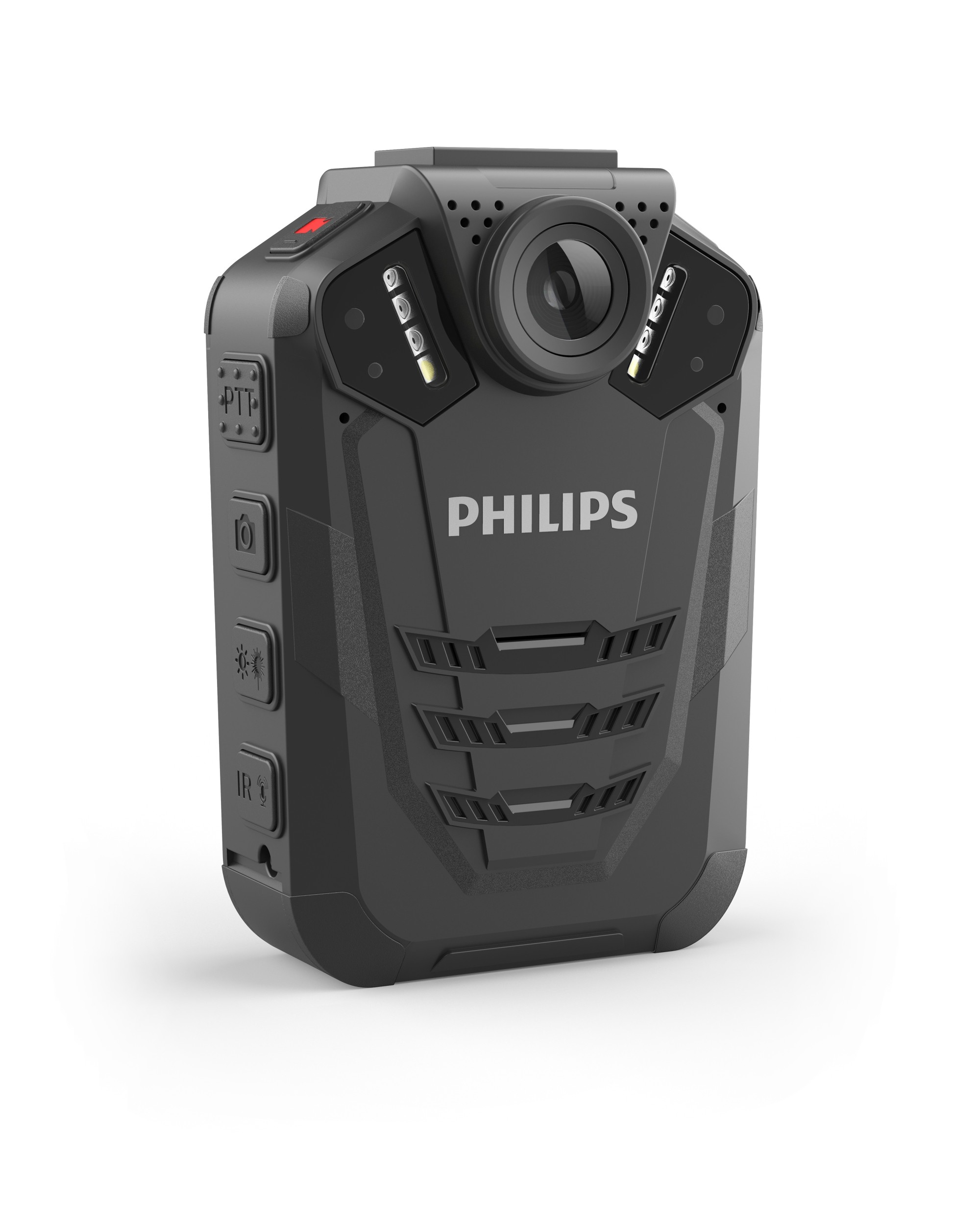

Philips Video Tracer Body worn recorder DVT3120

Philips Video Tracer Body worn recorder DVT3120

Product Code:DVT3120

Reliable high quality evidence

with HD video and audio recording
The Philips Video Tracer Body-Worn Recorder DVT3120 will protect you in case the unexpected happens. Rely on excellent video and audio performance to provide you with crystal clear evidence when you need it.

Description

dvt3120

Philips Video tracer body worn recorder DVT3120



Highlights

Superior audio quality and design

  • Full HD 1080p recording to capture important details
  • 170° wide angle coverage for a more complete picture of any incident
  • Night vision mode to capture a sharp, high quality recording in low light conditions

Enhance your productivity

  • Motion sensor, pre and post recording function for never missing a recording
  • Water mark with date, time and ID and GPS for reliable video evidence
  • Rechargeable li-polymer battery for extra long recording

Designed for professionals

  • 2" LCD screen allows instant video playback
  • MicroSD memory card slot for virtually unlimited recording.
  • Robust and water resistant design for extra durability




FEATURES

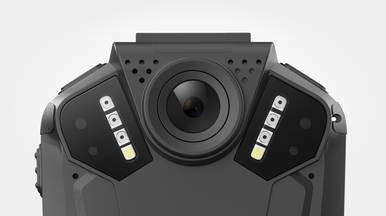

csm dvt3120 philips videotracer hd recording fim 62511ad587Full HD 1080p recording to capture important details

Rely on excellent video and audio performance to provide you with crystal clear evidence when you need it. With its full HD 1080p video capabilities, the PHILIPS Video tracer captures video in sharp and vivid detail. The snapshot feature allows you to capture photos while recording video. With the audio-only feature you can record notes.

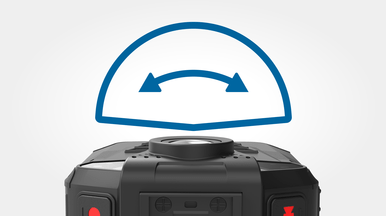

170° wide angle coverage for a more complete picture of any incident
csm dvt3120 philips videotracer super wide angle fim 19f6f1d0a8

Capture more of a scene with a proven 170° wide angle lens giving you a more complete picture of any incident. The built-in laser pointer assist you to locate the recording area without looking at the screen.

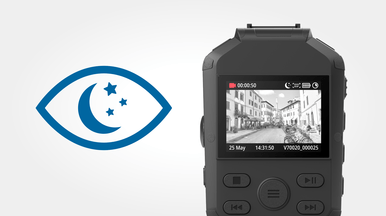

csm dvt3120 philips videotracer night vision fim f18f9e8552Night vision mode to capture a sharp, high quality recording in low light conditions

Built-in night vision with 6 infrared LEDs allows you to capture sharp video even at night. LED indicaters, (optional) audio and vibration alerts will notify you when recording has started or stopped.

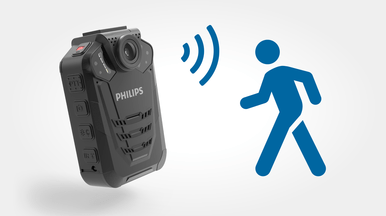

Motion sensor, pre and post record function for never missing a recording
csm dvt3120 philips videotracer motion detection fim 7876cfd234

The pre recording function allows you to spontaneously record important parts of an incident. Post recording ensures that you never miss a moment even after you stop recording. Motion detaction starts video recording automatically when any objects enter the field of view. Once the object comes out of the coverage range, the recording stops and the file is saved.

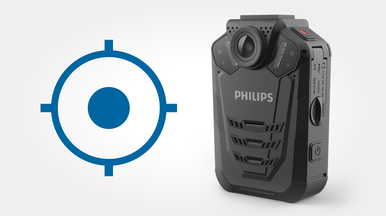

csm dvt3120 philips videotracer gps fim af856f8b61Water mark with date, time and ID and GPS for reliable video evidence

A water mark with a unique user ID, a time and date stamp can be embedded into the video for reliable evidence. Built-in GPS allows you to track your location.

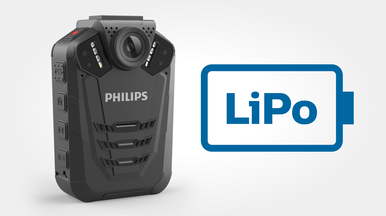

Rechargeable li-polymer battery for extra long recording
csm dvt3120 philips videotracer battery fim 48b3e43549

The high capacity li-polymer battery can be easily charged through a standard micro USB port. This guarantees extended battery life for extra long recording ensuring that your recorder will always be ready to work when you are.

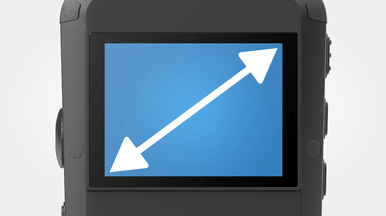

csm dvt3120 philips videotracer 2 inch screen fim a919d2bf5d2" LCD screen allows instant video playback

The recorder features a 2.0 inch (5.1cm) LCD screen and a built-in speaker allowing you to instantly playback captured still images and recorded audio and video files. For playback on a larger screen, the video tracer has a micro HDMI output port and AV output port for connecting to standard and HDTV television sets.

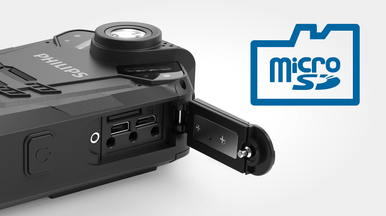

MicroSD memory card slot for virtually unlimited recording
csm dvt3120 philips videotracer memory card fim b1102d1fb2

Virtually unlimited recording and storage capacity thanks to a microSD memory card slot supporting upto 128 GB of memory

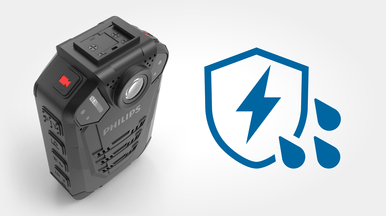

csm dvt3120 philips videotracer durable design fim 9caaea244dRobust and water resistant design for extra durability

Its durable and IP67-rated water-and dust-resistant design creates a robust shell around the device. Ergonomically placed keys allow for convenient, quick and direct access to the most important functions



SPECIFICATIONS

SPECIFICATIONS



Technical Specifications

Connectivity

Headphones: 2.5 mm

AV in: 2.5 mm

AV out: 2.5 mm

HDMI: type D (micro)

USB: micro USB 2.0

Display

Type: color TFT

Diagonal screen size: 2 inches / 5.1 cm

Resolution: 320 × 240 pixels

Video recording

Chipset: Ambarella A7LA50

Sensor: 5 MP CMOS sensor

Viewing Angle: 170 degrees

Video resolution: 2560 X 1080 9) 25/30/50/60 fps

px (21:9) 25/30 fps, 2304 x 1296

px (16:9) 25/30 fps, 1920 x 1080

px (16:9) 25/30 fps, 1280 x 720

px (16:9) 25/30/50/60 fps

848 x 480 px (16:

Video encoding: H.264

Video format: MPEG4

Loop recording

Automatic file spit: 5/10/15/30/60 minutes

Pre-record function: max. 50 seconds

Post-record function: 5/10/15/30/60 seconds

Motion detection: low, medium, high

Car DVR mode

Photo Capturing

Capture photos during video recording

Image size: 32 MP, 23 MP, 20 MP, 18 MP, 16 MP, 14 MP, 12 MP, 8 MP, 5 MP, 3 MP

Image format: JPEG

Photo quality: super fine, fine, normal

Burst photo shooting: 3/5/10/20 photos in a row

Self-timer: 3/5/10/30/60 seconds

EV Correction



Night Vision

Infrared light: 6 IR LEDs

Flash light: 2 LEDs

Up to 6 meters with visible face image

Audio recording

Built-in microphone

Audio format: WAV

Recording mode: HQ (1536 kbps), SLP (385 kbps)

Microphone sensitivity: low, medium, high

Noise cut

Storage media

MicroSD card socket: upto 128 GB

Convenience

Upgradeable firmware

Device languages: English, French, German, Spanish, Polish, Russian

Built-in speaker

One-touch recording

Audible, visual and haptic indications when starting and stopping recording

Marker for important videos

Auto-off function: 1/2/3/5 minutes

LCD auto-off function: 30 seconds, 1 minute, 3 minutes

Security

File tagging with GPS coordinates

Water mark: user ID, time and date stamp embedded in video

Unique user ID: 5 digit device IDand 6 digit personal ID

Auto-divide function to prevent corruption of video files caused by erroneous operation.

Recordings can only e deleted on the computer via USB cable.

Power

Battery type: Li-polymer built-in battery

Battery capacity: 3400 mAH

Battery lifetime: 9.2 hrs (848 x 480 px), 9 hours

(1280 x 720 px), 8.4 hours

(1920 x 1080 px), 8.2 hours

(2560 x 1080 px), 7.2 hours

(2304 x 1296 px)

Charging time (full charge): 5 hours



System requirements

Free USB port

Operating System: WIndows 10/8/7, macOS 10

Design and finshing

Color(s): dark grey

Operation conditions

Temperature: -5° -45°C, 23° -113°F

Humidity: 10% -90%, non-condensing

IP67 water and dust resistance

Green specifications

Lead-free soldered product

Package contents

Recorder

Memory card

Mounting clip and pins

AV cable

USB cable

Pouch

Quick start guide

Product dimensions

Product dimensions (W x H x D): 61 x 91 x 34 mm / 2.4 x 3.6 x 1.3 inch

Weight: 180 g / 6.2 oz

SUPPORT

SUPPORT
Manuals and documentation
pdf Leaflet (646 KB)
pdf Quick start guide (701 KB)
pdf User manual (2.4 MB)
