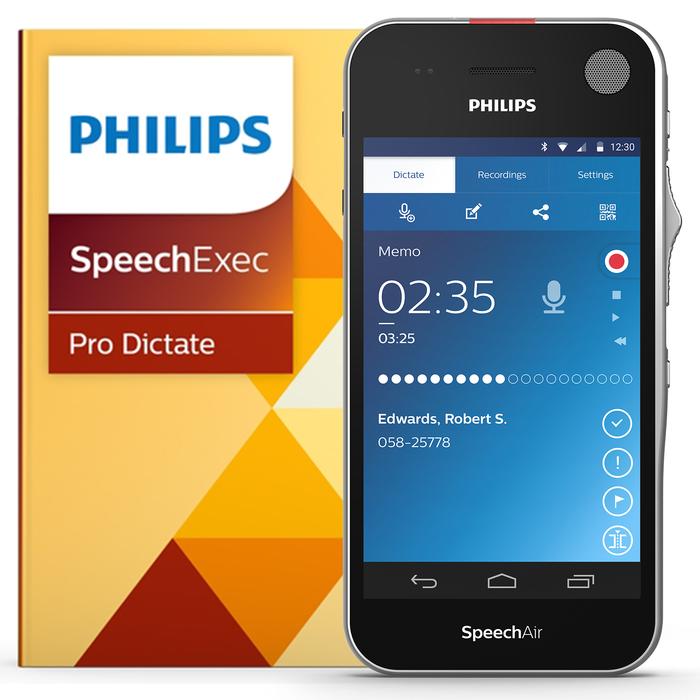

Philips SpeechAir Smart Voice Recorder PSP1200 with SpeechExec Pro dictate Software

Philips SpeechAir Smart Voice Recorder PSP1200 with SpeechExec Pro dictate Software

Product Code:PSP1200

Smart recording on the go

The New Philips PSP1200 SpeechAir smart voice recorder saves you time and resources by allowing you to work more flexibly than ever before. Integrated Wi-Fi functionality facilitates quick file download from any network. Recordings are encrypted in real time for maximum data security. The device also features three microphones dedicated to outstanding voice recording quality.

Description

PSP1200

Philips SpeechAir smart voice recorder PSP1200



Highlights

Superior audio quality and design

  • Wear-free slide switch
  • Three professional microphones
  • Larger playback speaker
  • Gorilla glass and antimicrobial housing

Enhance your productivity

  • Wi-Fi, LAN, USB & Bluetooth
  • Barcode scanner and camera
  • Docking station



Designed for professionals

  • Philips dictation App
  • Maximum data security
  • Dictation Workflow
  • Remote administration

Build your own solution

  • Hardware SDK
  • Android operating system
  • Software development kit (SDK)

FEATURES

csm psp1000 philips speechair voice recorder 06 slideswitch fml business large f0da48c448  Wear-free Slide Switch

The ergonomic and wear-free slide which is designed for efficient single-handed operation without having to look down at the device. It allows for quick and easy file operation (play, pause, stop, fast forward, fast rewind). A customizable function key above the slider gives quick access to the app.

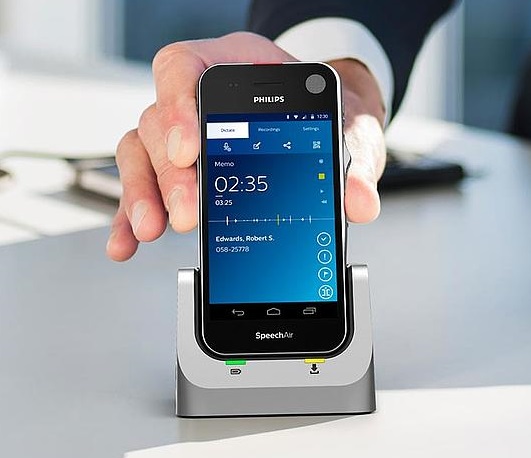

 Docking Station

csm psp1000 philips speechair voice recorder 07 dockingstation fml business large c724fe5012

The docking station with an anti-theft system (Kensington lock) automatically transfers all your recordings to your computer and quickly re-charges your device. The LAN connection allows you to transfer your files directly from the docking station without a computer.

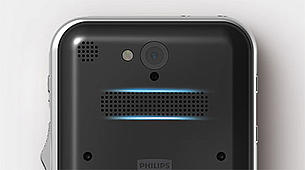

csm 01 large speacker 3ab06ee845  Larger playback speaker

The large built-in speaker allows you to playback your recordings in crystal-clear audio quality. A smaller speaker is also situated at the front of the machine for excellent quality stereo playback of your dictations.



Wi-Fi, LAN, USB and Bluetooth

SpeechAir PSP1100

Save time by transferring your finished recordings wirelessly to your transcription staff and directly access patient or client data. Use Wi-Fi for VoIP calls and access your emails and calendar. Use Bluetooth to send and receive data or to connect external speakers.

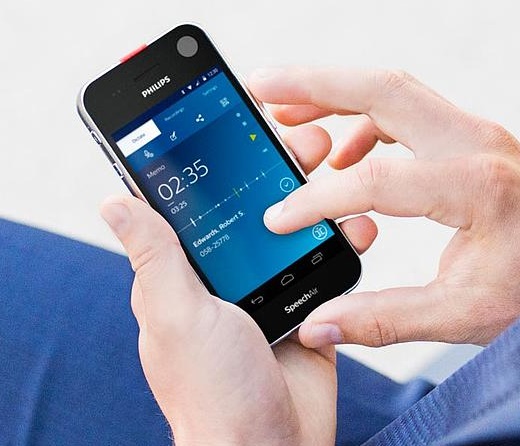

csm psp1000 philips speechair voice recorder 08 dictation app fml business large f1ed18f687   Philips dictation App

The integrated recorder app comes with professional dictation features such as editing modes, priority, EOL flag, enhanced data and dictation list as well as sending options (to network folder, Philips SpeechLive services or email recipients).

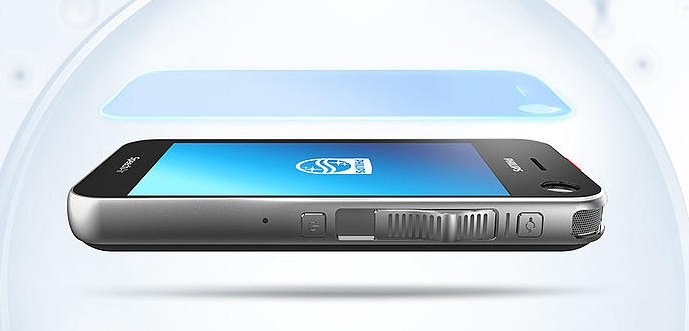

 Gorilla glass and antimicrobial housing

csm psp1000 philips speechair voice recorder 04 antimicrobial gorilla fml large 2a6aeddacf

Gorilla glass makes the device scratch and shock resistant. The device is shockproof according to military standard 516.6. The housing is made of antimicrobial synthetics. These materials work against bacteria and various microorganisms to ensure hygienic working.





feature 8Barcode scanner and camera

The camera allows you to conveniently attach photos supporting your dictations. It can also be used as an integrated barcode scanner linking patient and client data to a recording.



Remote Administration

csm 03 remote admin ff0b18ced9

Optional remote administration using Philips Remote Device Management software* allowsIT administrators to manage, configure andupdate dictation hardware centrally, saving valuable time and resources.

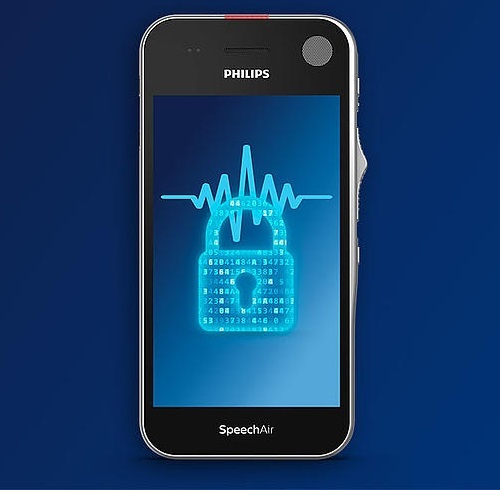

csm psp1000 philips speechair voice recorder 03 security fml large 611d7bdad8 Maximum data security

Recordings are encrypted in real time using the Advanced Encryption Standard (AES) 256bit, which has been approved in the USA for the most highly classified government information. A PIN code protects the device against unauthorized use. Settings can be locked, for instance connection to Wi-Fi networks can be restricted.

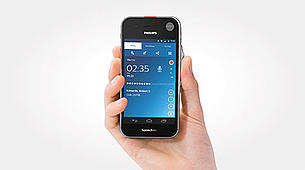

Hardware SDK
csm 02 dictation app e72d5ef2b8

The Hardware SDK allows the integration of SpeechAir into other workflow solutions, such as hospital information systems (HIS) or law practice management software. This allows for example access to patient and client data directly on your SpeechAir to achieve a smoother workflow.

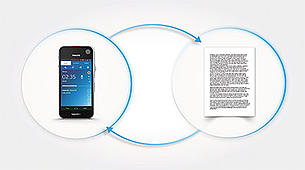

csm 04 dictworkflow 283e0645b1 Dictation workflow

SpeechAir also comes with Philips SpeechExec Pro Dictate software for an efficient and streamlined offline office workflow (PSP1200). The Philips SpeechLive service transfers your dictation workflow to the cloud and features online speech recognition and a transcription service.



Android operating system

SpeechAir-PSP1100

Android is a secure and intuitive operating system which allows you to install apps on your SpeechAir and have all important applications on one single device.

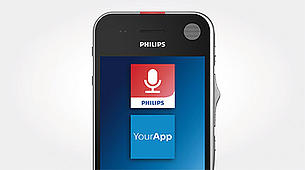

csm 05 sdk 8cd46869f5Software development kit (SDK)

The software development kit (SDK) allows you to customize your existing app to use the different microphones, speakers, slide switch, function key, microphone sensitivity and LED.



Three professional microphones

SpeechAir PSP1100 three professional microphone

Three professional microphones deliver ultimate sound quality in any recording situation. The 360° microphone is ideal for recording dictations and meetings. The direction microphone is best suited for noisy environments. For VoIP telephony the SpeechAir uses a dedicated microphone.







SPECIFICATIONS

SPECIFICATIONS

Technical Specifications

Device

Slide switch type: International slide switch (record/stop/play/rewind)

CPU: Dual core cortex - A9 1.6 GHz

RAM: 1 GB DDR3

Internal memory: 16 GB (12 GB Available)

Sensors: light sensor, motion sensor, optical proximity sensor

Vibration module

Customizable function button

Dimensions

Product dimensions (W x D x H): 62 x 127 x 15mm / 2.4 x 5.0 x 0.6 inches

Weight: 160g / 4.1 oz

Connectivity

Headphones: 3.5mm / 1.4 inches

Microphone: 3.5mm / 1.4inches

USB: micro USB 2.0

Wi-Fi: IEEE 802.11 a/b/g/n

Bluetooth: 4.0

Docking station connector

Display

Type: IPS with 16 million colors

Screen Type: Scratch resistant Gorilla glass touch screen

Diagonal screen size: 10.16 cm / 4 inches

Resolution: 480 x 800 pixels

Audio (supported by operating system)

Recording format: AMR, ACC

Playback format: MPEG (MP1, MP2, MP3), WMA WAV, APE, OGG (OGG, OGA), FLAC, AAC (AAC, M4A)

Microphones

Directional microphone: for speech recognition

360° microphone: for meetings and dictation

MEMS microphone: for VoIP telephony

Philips dictation recorder app

Recording modes: DSS Pro (DS2/mono), PCM Voice (WAV/mono)

Bit rate: 28 kbit/s (DSS pro), 256 kbit/s (PCM Voice)

Edit modes: insert, overwrite, append



Recording time: 1073 hours (DS2), 117 hours (WAV)

Sample rate: 16 kHz / 16 bit

Supported barcodes: Code 39, Code 93, Codabar, Code 128, Code 25, Code 11, MSIPlessey, EAN, UPC, QR code, Data Matrix

Speakers

Speaker type: built-in rectangular dynamic speaker

Dimensions front speaker: 6 x 12mm / 0.2 x 0.5 inches

Dimensions rear speaker: 11 x 15mm / 0.4 x 0.6 inches

Camera

Resolution: 5 megapixels

Autofocus

Flash

Image formats (supported by operating system): JPG, JPEG, BMP, GIF, PNG

Video recording formats ( supported by operating system): H.264/AVC (MOV/GP) upto 1920 x 1088 pixels (30 fps)

Video playback formats (supported by operating system): MPEG-1/2 (DAT, MPG, VOB,TS) upto 1920 × 1088 pixels (30 fps), MPEG4 (AVI, MKV, MP4, MOV, 3GP) up to 1920 × 1088 pixels (30 fps), DIVX (AVI, MKV, MP4, MOV 3GP) up to 1920 × 1088 pixels (30 fps), Real Media (RM, RMVB) up to 1920 × 1088 pixels (30 fps), H.264 (AVI, MKV, MP4, MOV, 3GP, TS, FLV) up to 1920 × 1088 pixels (30 fps), MVC H.264 (AVI, MOV) up to 1920 × 1088 pixels (60 fps), VP8 (WEBM) up to 1920 × 1088 pixels (30 fps), VC-1 (WMV, ASF, TS, MKV, AVI) up to 1920 × 1088 pixels (30 fps), H.263 (3GP, MOV, MP4) up to 704 × 576 pixels (30 fps), Sorensen Spark (FLV) up to 1920 × 1088 pixels (30 fps), ON2 VP6 (AVI, FLV) up to 1920 × 1088 pixels (30 fps), JPEG (AVI, MOV) up to 1920 × 1088 pixels (30 fps)

 Power

Battery type: built-in rechargeable Li-ion
battery

Battery capacity: 2700 mAH

Battery lifetime: upto 12 hours of recording (DSS QP mode)

Standby time: upto 97 hours

Charging time (full charge): approx 3 hours



Docking station:

Product dimensions (W x D x H):82 × 77 × 56 mm / 3.2 × 3.0 × 2.2 inches

Weight: 264 g / 9.3 oz

LAN connection

Kensington Lock

Removable magnetic inlay for use with case

Green Specification

Compliant to 2011/65/EU (RoHS)

Operation Conditions

Temperature: 5° – 45° C / 41° – 113° F

Humidity: 10 % – 90 %, non condensing

Security

Real-time file encryption

Encryption standard (Philips dictation recorder app):Advanced Encryption Standard (AES) 256 bits

Device lock with PIN code or password

Configurable security settings with Software
Development Kit (SDK) or configuration software

Lockable settings

System requirements for SpeechExec workflow software

Processor: Intel Dual-Core, 1.0 GHz or
equivalent processor

RAM memory: 1 GB (2 GB recommended)

Hard disk space: 100 MB for SpeechExec
software, 1 GB (32 bit)/2 GB (64 bit) for
Microsoft .NET Framework

Operating system: Windows 10/8/7 (32/64 bit)
Free USB port

Graphics card: DirectX-compliant graphics card
with hardware acceleration recommended
Windows Media Player must be installed



Package Contents:

  • SpeechAir smart voice recorder
  • Docking station
  • in-ear headphone
  • USB cables (x2)
  • Power supply with international adapters: ( US,UK, Europe, Asia Pacifi c)
  • USB stick containing user manual, Philips
  • SpeechExec Pro Dictate dictation software
  • Philips SpeechAir management software
  • Quick start guide
