Highlights
Superior audio quality
Enhance your productivity
|
Designed for professionals
|
FEATURES
The superior microphone reduces background noise and is optimized for speech recognition. The built-in headset socket allows you to attach the noise-canceling headset for hands-free recording and even more accuracy in a noisy environment.
The advanced built-in front speaker and the integrated sound card guarantee crystal clear playback of your dictation files.

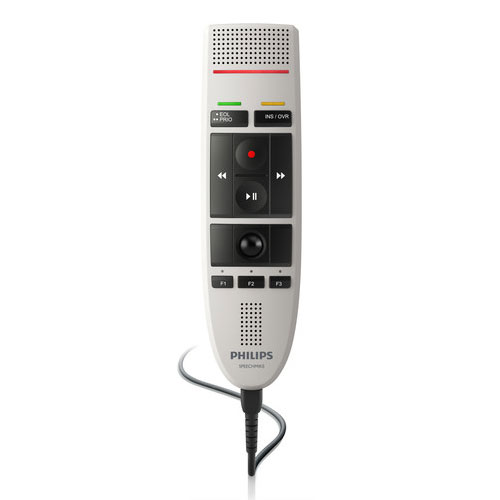

Designed with three ergonomic zones, it has been tested and proven by users to have the most comfortable fit in the human hand. The dictation zone is optimized to keep thumb movement to a minimum and allows for blind operation. The buttons needed for the actual dictation functions take up the greatest amount of space in the central area of the device. Less frequently needed function buttons are clearly arranged above and below. The trackball uses a laser sensor that allows precise cursor movements. It contains an integrated confirmation button for simple control of PC functions and can also be used to control playback volume.
The antimicrobial surface is important for use in a clinical environment. This feature was achieved by adding a substance to the plastic that impedes the reproduction of microorganisms, thus improving hygiene.
Link client or patient data to a recorded file simply by scanning a bar code. The scanned information is automatically attached to the dictation file, streamlining the documentation process. All identifying information is entered accurately, increasing security and potential for cost savings.
The dictation management software SpeechExec Pro Dictate allows the seamless and flexible integration of dictation, transcription, and voice recognition in a single application. Dictation files and documents can be sent via network or email, uploaded to an FTP server, or archived in the company network - even in encrypted form. User-friendly functions allow for clear and transparent organization of the recordings and the implementation of an efficient document workflow.
The SpeechMike features preconfigured buttons for direct control of Dragon NaturallySpeaking, the voice recognition solution from Nuance.
Philips provides a software development kit (SDK) for speech, office, and business application developers that allows for convenient programming of interfaces when integrating the SpeechMike into professional information and dictation solutions.
Technical Specifications
ConnectivityUSB: High-speed USB 2.0 Audio recording
Microphone type: electret condenser microphone Microphone capsule: 10 mm Characteristic: uni-directional Frequency response: 200–10 000 Hz Sensitivity: 85 dB–104 dB (depending on position of mic-slider in sound control panel) Signal-to-noise ratio: > 70 dBA Sound Speaker type: built-in round, dynamic speaker Speaker diameter: 30 mm Acoustic frequency response: 300–7500 Hz Speaker output power: > 200 mW
|
Barcode scanner (LFH3300/3010)Compatible bar codes: EAN, UPC, Code 11/39/93/128, Codabar, MSI Code, RSS, Interleaved 2 of 5, Discrete 2 of 5 Laser class: class 1 laser product System requirements Processor: Pentium IV 1 GHz recommended RAM memory: 1 GB (2 GB recommended) Hard disk space: 100 MB for SpeechExec, 850 MB for Microsoft .NET 4, 30 MB for Speech Control. 250 MB for Microsoft .NET 2.0 Operating system: Windows 8/7/Vista (32/64 bit), Mac OS X 10.8/10.7 Free USB port DVD-ROM drive Graphics card: DirectX-compliant graphics card with hardware acceleration recommended Sound device: Windows-compatible sound device Green specifications Compliant to 2002/95/EC (RoHS) |
Lead-free soldered product Operation conditions Temperature: 5 °–45 °C/41 °–113 °F Humidity: 10 %–90 % Dimensions Product dimensions (W × D × H): 45 mm × 165 mm × 30 mm/1.8" × 6.5" × 1.2" Weight: 0.160 kg/0.353 lb Cable length: 3 m/10 ft Design and finishing Material: antimicrobial housing Color(s): warm grey/black Package contents SpeechMike USB dictation microphone Quick start guide |
LFH3205 with SpeechExec workflow software
LFH3200 without SpeechExec workflow software
LFH3215 with SpeechExec workflow software
LFH3210 without SpeechExec workflow software
LFH3220 without SpeechExec workflow software
Manuals and documentation |
Quick start guide (push-button version) (772 KB) |
Quick start guide (slide switch REC, STOP, PLAY, REW) (788 KB) |
Quick start guide (slide switch FWD, PLAY/REC, STOP, REW) (784 KB) |
User manual (push-button version) (751 KB) |
User manual (slide switch REC, STOP, PLAY, REW) (764 KB) |
User manual (slide switch FWD, PLAY/REC, STOP, REW) (762 KB) |
User manual (Speech Control for Mac) (1.2 MB) |
Barcode scanner configuration guide (457 KB) |
Leaflet (457 KB) |
